Autel MaxiIM IM508

IMMO & Key Coding / Programming & Diagnostic Scanner

MaxiIM IM508 auto key programmer and diagnostic tool is capable of providing extraordinary service functions for the immobilizer system.

Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions.

IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Contact Us

Main Features

  • Advanced Key Programming
  • PIN / CS Reading (Full Lost)
  • Key Generation
  • Key Programming
  • Command Introduction
  • Backup / Repair IMMO Data
  • IMMO ECU Reset / Adaptation
  • IMMO ECU Regeneration / Coding
  • BMW FEM / BDC Key
  • Programming and ECU Adaptation
  • VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Copy, Full Lost, A6 Full Lost and More

Diagnose Engine, Transmission, ABS, and Airbag SystemsProgram Keys and Modules and Perform ECU Coding with Autel IM508When does the car key need to be programmed?

XP200 Key & Chip Programmer

  • Key Read / Write
  • EEPROM / MCU Read / Write

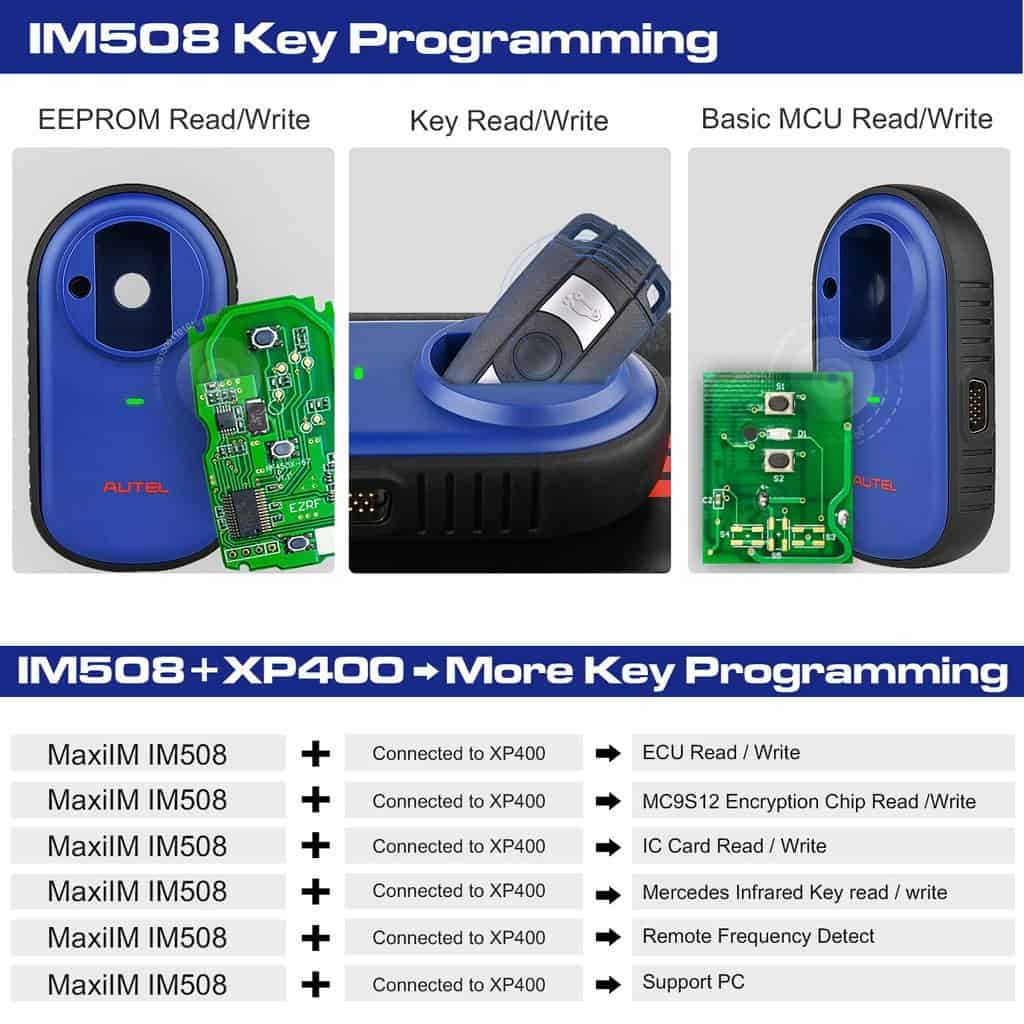

IM508 Key Programming IM508 + XP400 (more key programming)

Diagnostic Function of More Than 80 Vehicles at Advanced Level

  • All System Diagnostics
  • Auto Search / VIN Finding
  • Reading / Deleting Error Code
  • Viewing the Live Data Stream
  • Viewing Records of Failure History
  • Store and Data Manager Applications

All systems diagnosticsAdvanced 22 maintence service

Autel MaxiIM IM508 Advanced Service Functions:

  • EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming

Autel MaxiIM IM508 Parameter:

  • 7-inch LCD Touch Screen
  • 32GB Memory
  • Android Kit Floor
  • Wi-Fi
  • ENGLISH LANGUAGE
  • 5000mAh Li-polymer Battery

Specifications

  • Operating System: AndroidTM 4.4.4
  • Processor: Cortex-A9 processor (1.6 GHz)
  • Memory: 32GB
  • Display: 7-inch LCD capacitive touchscreen with 1024×600 resolution
  • Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 32GB)
  • Sensors: Ambient light sensor for brightness auto changing
  • Audio Input / Output: Input: N/A
  • Output: buzzer
  • Power and Battery: 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
  • Tested Battery Life: Around 4.5 hours of continuous use
  • Battery Charging Input: 5 V/1.5 A
  • Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
  • Operating Temp.: 0 to 50°C (32 to 122°F)
  • Storage Temp.: -20 to 60°C (-4 to 140°F)
  • Operating Humidity: 5% – 95% non-condensing
  • Net Weight: 788 g (2.42 lb.)
  • Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Low-speed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

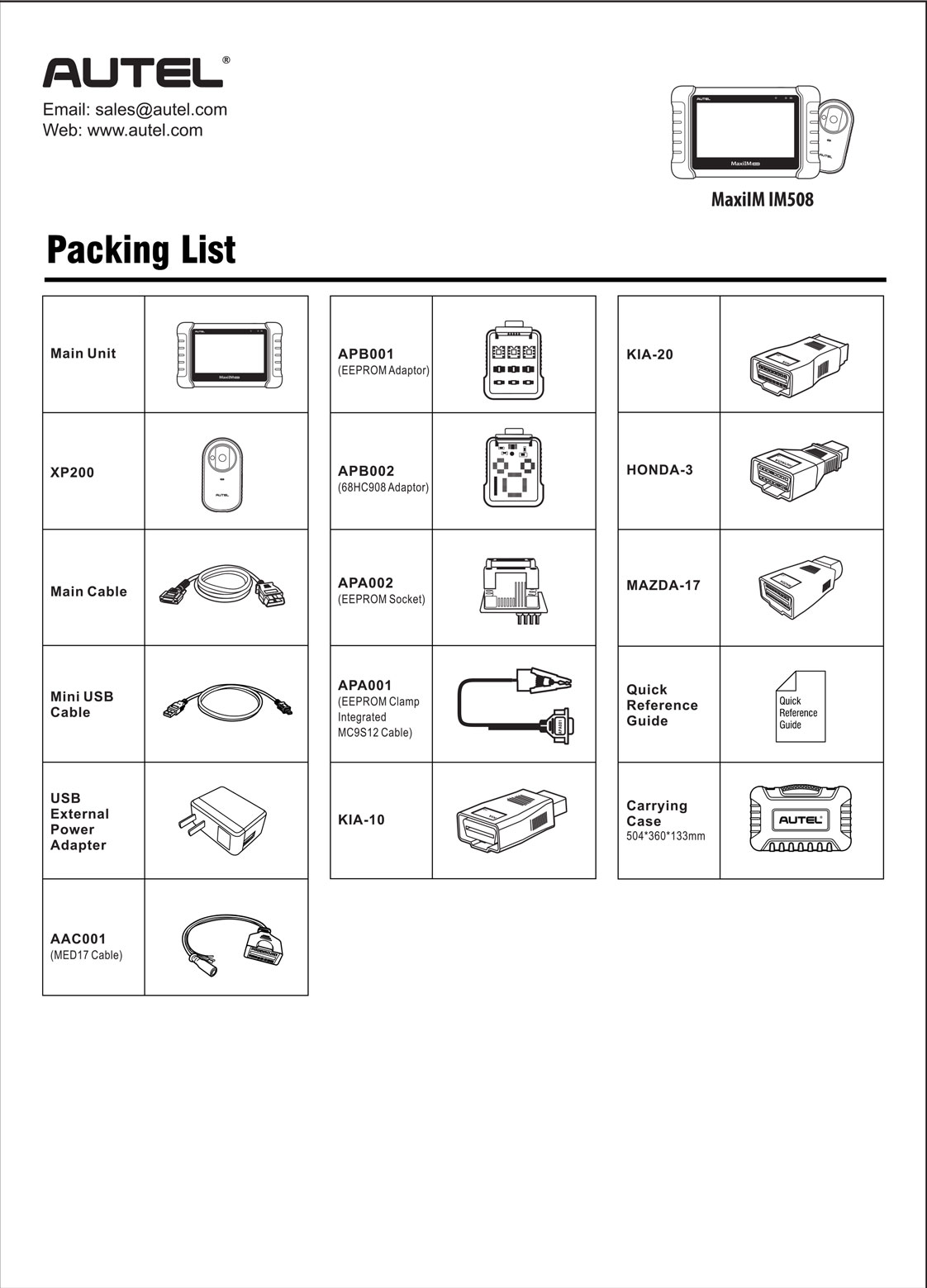

Autel MaxiIM IM508 Package Includes:

  • MaxiIM IM508 Tablet
  • XP200 Key Programmer
  • Connection Cables
  • USB Adapter
  • Carrying Case
