Autel PowerScan PS100
Automotive Circuit Tester Power Circuit Probe Kit Electrical System Diagnostic Tool
Autel PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step.
An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.
Autel PowerScan PS100 Generation Description:
Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle’s battery, you can:
1. Test for continuity with its built-in auxiliary ground lead.
2. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
3. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
4. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
5. Follow and locate short circuits without wasting fuses. The tool’s long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Autel PowerScan PS100 Features:
Circuit breaker protected
Extremely easy to use and highly reliable
Built-in Flashlight enables you to work in the dark
Instantly identifies positive, negative and open circuits
Instantly checks continuity of switches, relays and diodes
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle’s battery, you can:
1. Test for continuity with its built-in auxiliary ground lead.
2. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
3. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
4. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
5. Follow and locate short circuits without wasting fuses. The tool’s long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
| TFT colour display | 160 x 128 Dpi |
| External Power | 12 – 24 Volts DC provided by the vehicle battery |
| Length | 126 mm x Width: 46.5 mm x Height: 35 mm |
| Circuit Breaker | 1 -10 Amp Load |
| Frequency Range | 0 – 10 Khz |
| Resistance range | 0 – 200 K Ohms |

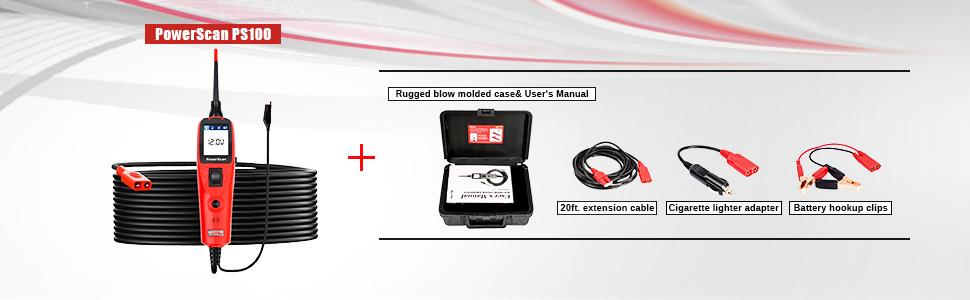

- Rugged blow molded case
- Probe tip
- Cigarette lighter adapter
- 20ft. extension cable
- Battery hookup clips
- User’s Manual
1.Is the PowerScan Probe Tester computer and airbag safe?
The tool LED and LCD pull no more than 1 milliamp of current, therefore when using it as a test light or multimeter it is computer and airbag safe. However, pressing the power switch is a different story. When you press the switch forward, you are conducting full battery current to the tip of the probe. There is a nice safety feature built into the tool. Simply connect the extra ground lead to the tool and press the power switch forward until it trips the circuit breaker.This will prevent power from going to the tip but still allow you to use the tool as a multimeter. When you are away from computer components, simple press the reset button and you are ready to power up again.
2.Why do I have no power at the tip when I am pressing the power switch forward but the red LED is on?
The power switch goes through a lot. It is one of the few things that go wrong with the tool. The switch is a consumable that needs to be replaced on occasion. We have made it real simple to not only change it but also buy a new switch. The switch can be snapped out and replaced in seconds. You can buy switches from your Autel authorized tool supplier. The tool with the Rocker Switch slots makes it easy to replace a worn switch in the field without having to send it in for repair.
