Autel MaxiTPMS TBE200

Laser-Enabled Tire Tread and Brake Disc Wear Examiner

The Autel MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements.

Contact Us
  • TBE200 can quickly check both tire tread & brake disc in one tool, There is no need to remove the wheel during measurement. Technicians could get comprehensive test reports with ITS600: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires Autel ITS600)
  • TBE200 is a laser-enabled examiner with 0.1mm accuracy measurement. It features tire expiration notice, tire recall lookup and takes photos of tire wear and damage.
  • TBE200 provides real-time measurement data and curve display on the touchscreen. It is compatible with Passenger cars, off-road, and commercial vehicles
  • TBE200 helps technicians to get uneven wear analysis, replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

Laser Measurement

  • Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during the measurement
  • Laser measurement with 0.1mm accuracy
  • Full tread measurement
  • Quick Check both tread depth & brake disc

Powerful and Versatile TPMS ToolWireless Sensor Activation and Real-Time Data Display

Real-Time Tire Health Analysis

  • Real-time measurement data on touchscreen
  • Measurement data curve display
  • Uneven wear analysis
  • Test detail for single tire tread/ brake disc
  • Detailed replacement & maintenance suggestions (tire/ brake disc replacement, tire rotation/ alignment servicing)
  • Scan DOT, tire expiration notice, tire recall lookup
  • Take photos of tire wear & damage

Comprehensive TPMS Service Functions

Comprehensive Test Report

  • Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)

Ensure Proper TPMS Functioning with Autel TBE200

Features:

  • Tire Tread and Brake Disc Wear Examiner
  • Laser-Enabled; No Need to Remove Tire
  • 1.65” AMOLED Super Retina Touchscreen Display
  • Full-Color Graphical Display Illustrates Wear
  • Compatible with Passenger, Commercial and Off-road Vehicles
  • Displays Recommendations for Tire and Brake Disc Replacement, 4-wheel Alignment and Tire Rotation
  • 4-megapixel, 4 cm Macro Camera and 8-megapixel Zoomable Camera to Document Tire Damage
  • Work Alone or with New MaxiTPMS ITS600 Tablet
  • Scan Tire Identification Number (TIN)
  • 3000 mAh Lithium-Ion Battery

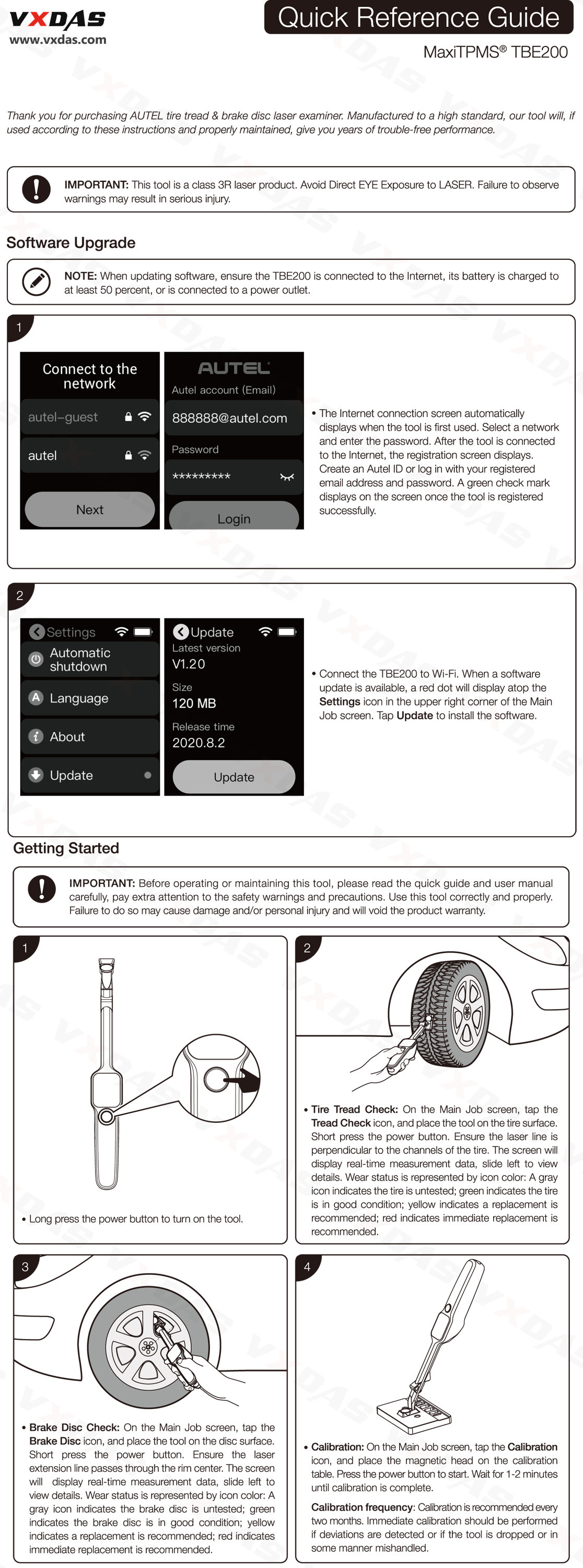

Quick Reference Guide
